Yunyi Explosion-proof Digital Insertion Digital Sensor Tuning Fork Density Meter Price

Product Categories
Xi'an Yunyi Instrument Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Yunyi Explosion-proof Digital Insertion Digital Sensor Tuning Fork Density Meter Price

  • 1
  • 2

Brand Name : Yunyi

Model Number : XY886

Certification : CE

Place of Origin : China

MOQ : 1

Price : 950-1200USD/PCS

Payment Terms : T/T, Western Union

Supply Ability : 100pcs per week

Delivery Time : 10 work days

Packaging Details : Carton Packaging

key word : Yunyi Explosion-proof Digital Insertion Digital Sensor Tuning Fork Density Meter Price

Protection : IP65

Process Pressure : 86Kpa~106Kpa

Model : XY-886

Measurement Range : 0.5-3.0 g/cm^3

Procedure Linkage : Thread, flange (optional)

Application Range : 0 ~ 80℃ degrees

Grade : Industrial

Temperature : -50℃~+200℃

Pressure Effects : negligible

Scope Of Application : -30~120 degrees

Acccuracy : 0.001

Shell Material : Cast aluminum

Contact Now

Yunyi Explosion-proof Digital Insertion Digital Sensor Tuning Fork Density Meter Price

Tuning fork density meter is the introduction of foreign advanced frequency tracking technology and the production of high-precision, high applicability vibration principle density meter, product design using plug-in installation, widely used in pipelines, open tank containers and closed tank containers In the medium density testing.

Tuning fork density meter sensor is composed of two piezoelectric crystals, one piezoelectric vibration, the other piezoelectric crystal vibration detection, tuning fork sensor built-in temperature sensor, the piezoelectric crystal vibration temperature compensation.

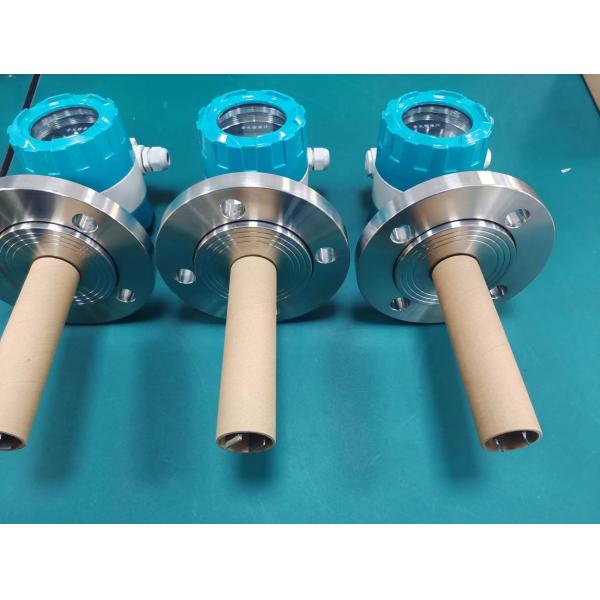

Detailed Images Tuning Fork Density Meter

Yunyi Explosion-proof Digital Insertion Digital Sensor Tuning Fork Density Meter Price

Specification Tuning Fork Density Meter

Density range : 0-3 g / CM3 (3 /2.5/ 2 /1.5/ 1)
Output: 4-20 mA 4-wire ( 2-wire system can not be used)
Accuracy: 0.001 g / cc, with a resolution of 0.0001 g / cc
Insertion depth : (flange distance to the end of the fork, minimum 125 mm, up to 2 meters)
Wetted material: stainless steel, Hastelloy C22, 400 manganese alloys, titanium, etc.
Fork Coating: standard, PTFE or electrolytic polishing
Power supply: 20 - 28 VDC, 35 - 45mA
Operating temperature range: -50 ℃ ~ + 200 ℃
Maximum working pressure: 20Mpa
Fluid viscosity range: 0 - 20000 cP
Temperature coefficient: 0.1 kg / m3 / ℃ (corrected)
Process connection: 1.5 "NPT threaded connection; DIN 50 PN40 and PN100 flange connection;
Protection: IP65
Display: Up density value, the density value can be switched to kg / cubic meter or g / cc by unit keys. Down display a temperature value (measured medium temperature ) temperature is original PT1000
Accessory: temperature of 4-20mA output signal
